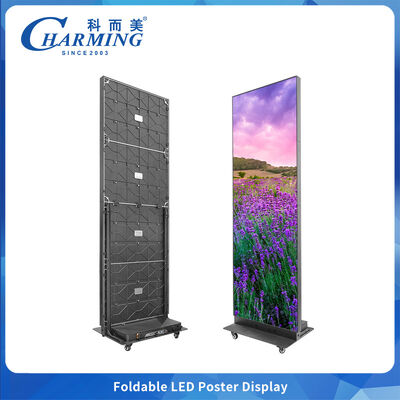

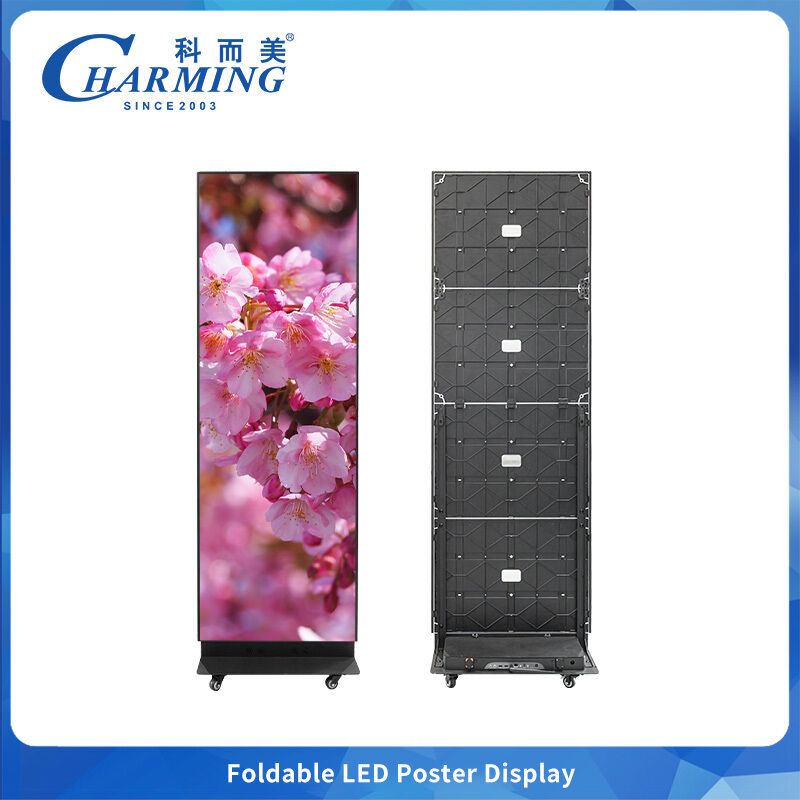

High Refresh Rate LED Video Wall Display with Aluminum Alloy Foldable Poster Screen and Intelligent Mobile Control for Engaging Digital Content
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | Charming |
| Certificación: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Número de modelo: | P1.86 P2 P2.5 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 2 piezas |
|---|---|
| Precio: | Negociable |
| Detalles de empaquetado: | Caja de cartón, Caja de madera, Caja de vuelo |
| Tiempo de entrega: | 10 días hábiles después del pago |
| Condiciones de pago: | L/C, T/T, Western Union, PayPal, efectivo |
| Capacidad de la fuente: | 500 pcs por semana |
|
Información detallada |
|||
| Ángulo de visión: | 140° | Nivel de protección: | IP43 |
|---|---|---|---|
| Material de las redes de cable: | Aleación de aluminio | Método de mantenimiento: | Mantenimiento delantero |
| Nivel gris: | 14-16 bits | Temperatura de trabajo: | -20 a 40 °C |
| Humedad de trabajo: | 10 a 65% de Hg | voltaje de trabajo: | CA 220 V, 50/60 Hz. |
| Resaltar: | foldable LED video wall display,aluminum alloy LED display,mobile control video wall |
||
Descripción de producto
High Refresh Rate LED Video Wall Display with Aluminum Alloy Foldable Poster Screen and Intelligent Mobile Control for Engaging Digital Content
| Type Number | P1.86 | P2 | P2.5 |
|---|---|---|---|
| Dimension (mm) | 657*2075*490mm | ||
| Pixel Pitch (mm) | 1.86mm | 2mm | 2.5mm |
| LED Standard | SMD1515 | SMD1515 | SMD2020 |
| Scan Mode | 1/43 Scan | 1/40 Scan | 1/32 Scan |
| Pixel Density (dot/m) | 288,906 | 202,500 | 160,000 |
| Max. Power (W) | 600W | ||
| Cabinet Weight (kg) | 48.8kg | ||
| Refresh Rate (Hz) | 7680Hz | ||
| Brightness (CD/m²) | 600 | 600 | 800 |
Product Features
- High Refresh Rate - Delivers smooth, flicker-free video playback
- GOB Technology - Protection for enhanced durability and reliability
- Intelligent Mobile Control - Easy operation and management via mobile devices
Other detail:
Installation Process
- Splice the boxes into the required size and shape, aligning holes with quick locks to secure the cabinet
- Identify power cables and signal cables, then insert them into the corresponding cabinet connections
- Connect the main signal cable and main power cable to the computer and controller, then complete screen setup after debugging
Packaging Options
We offer multiple packaging solutions including carton cases, wooden cases, and flight cases. Different products are configured with appropriate packaging to ensure optimal screen protection during transportation.
