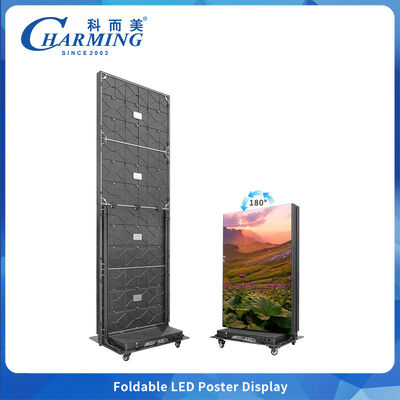

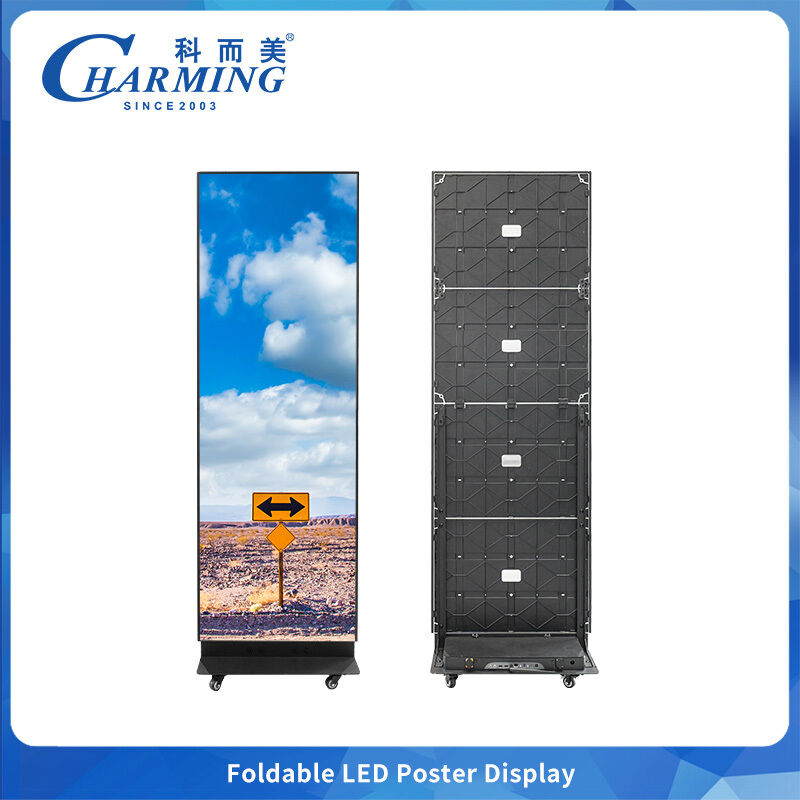

Foldable LED Poster Display Featuring High Refresh Rate GOB Process and Smart Mobile Control
Datos del producto:
| Lugar de origen: | Porcelana |
| Nombre de la marca: | Charming |
| Certificación: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| Número de modelo: | P1.86、P2、P2.5 |
Pago y Envío Términos:
| Cantidad de orden mínima: | 2 piezas |
|---|---|
| Precio: | Negociable |
| Detalles de empaquetado: | Caja de cartón, Caja de madera, Caja de vuelo |
| Tiempo de entrega: | 30 días hábiles después del pago |
| Condiciones de pago: | L/C, T/T, Western Union, PayPal, efectivo |
| Capacidad de la fuente: | 500 pcs por semana |
|
Información detallada |
|||
| Ángulo de visión: | 140° | Nivel de protección: | IP43 |
|---|---|---|---|
| Material de las redes de cable: | Aleación de aluminio | Método de mantenimiento: | Mantenimiento delantero |
| Nivel gris: | 14-16 bits | Temperatura de trabajo: | -20 a 40 °C |
| Humedad de trabajo: | 10 a 65% de Hg | voltaje de trabajo: | CA 220 V, 50/60 Hz. |
| Resaltar: | foldable LED poster display with GOB process,outdoor LED video wall with mobile control,high refresh rate LED display foldable |
||
Descripción de producto
High Refresh Rate Foldable LED Poster Screen with GOB Technology and Intelligent Mobile Control
Advanced foldable LED poster screen featuring high refresh rate technology, GOB protection, and intelligent mobile control for superior display performance.
Product Features
-
High Refresh Rate
-
GOB Technology
-
Intelligent Mobile Control
Product Parameters
| Type Number | P1.86 | P2 | P2.5 |
|---|---|---|---|
| Dimension(mm) | 657*2075*490mm | ||
| Pixel Pitch(mm) | 1.86mm | 2mm | 2.5mm |
| LED standard | SMD1515 | SMD1515 | SMD2020 |
| Scan Mode | 1/43Scan | 1/40Scan | 1/32Scan |
| Pixel density(dot/m) | 288906 | 202500 | 160000 |
| Max.Power(W) | 600W | ||
| Cabinet Weight(kg) | 48.8kg | ||
| Refreshrate(Hz) | 7680Hz | ||
| Brightness (CD/m) | 600CD/m² | 600CD/m² | 800CD/m² |
Installation Details
- Splice the boxes into the required size and shape, aligning holes with quick locks to secure the boxes
- Identify power and signal cables, then insert them into the corresponding box connections
- Connect the main signal and power cables to the computer and controller, then debug the screen for successful operation
Package Details
We offer multiple packaging options including carton cases, wooden cases, and flight cases. Different products are configured with appropriate packaging to ensure optimal screen protection during transport.
